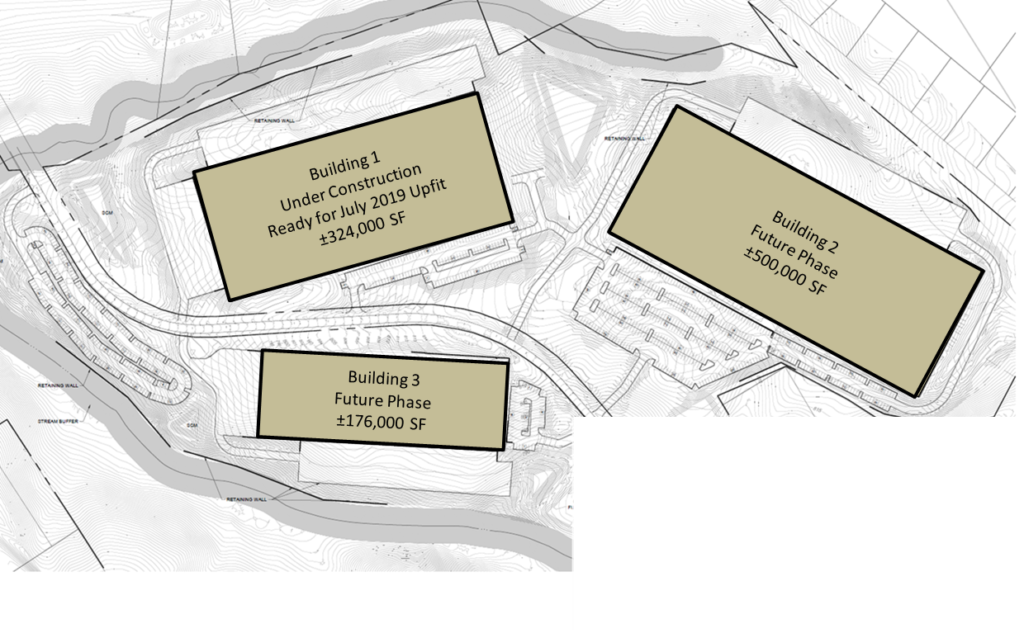

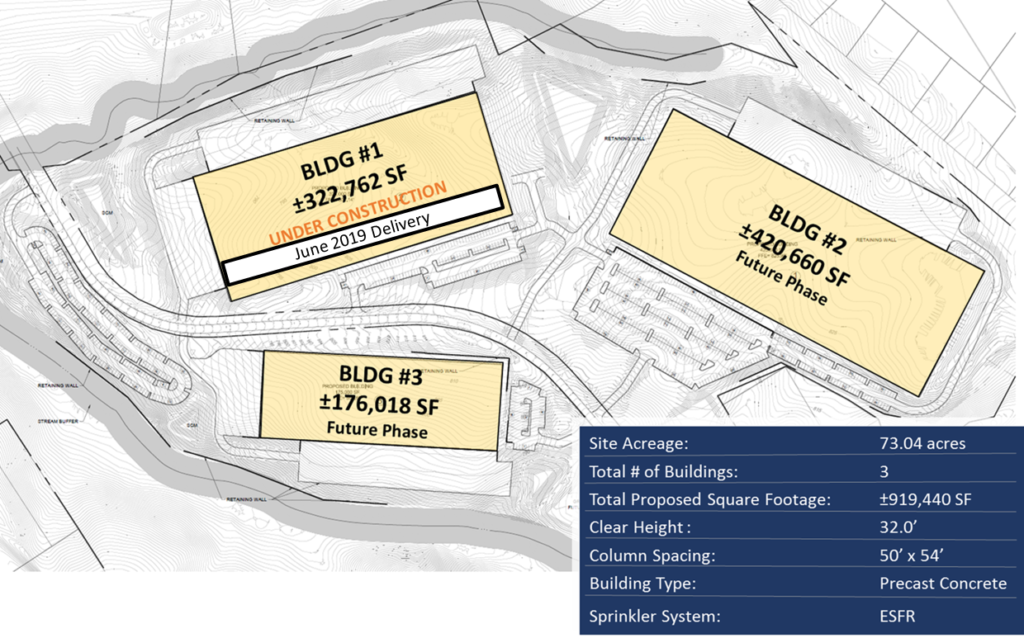

Davie Industrial Center - Site Plan
| Site Acreage: | 73.04 acres |
|---|---|
| Total # of Buildings: | 3 |
| Total Proposed Square Footage: | 920,678 SF |
| Clear Height: | 32.0' |
| Column Spacing: | 50' x 54' |
| Building Type: | Precast Concrete |
| Sprinkler System: | ESFR |

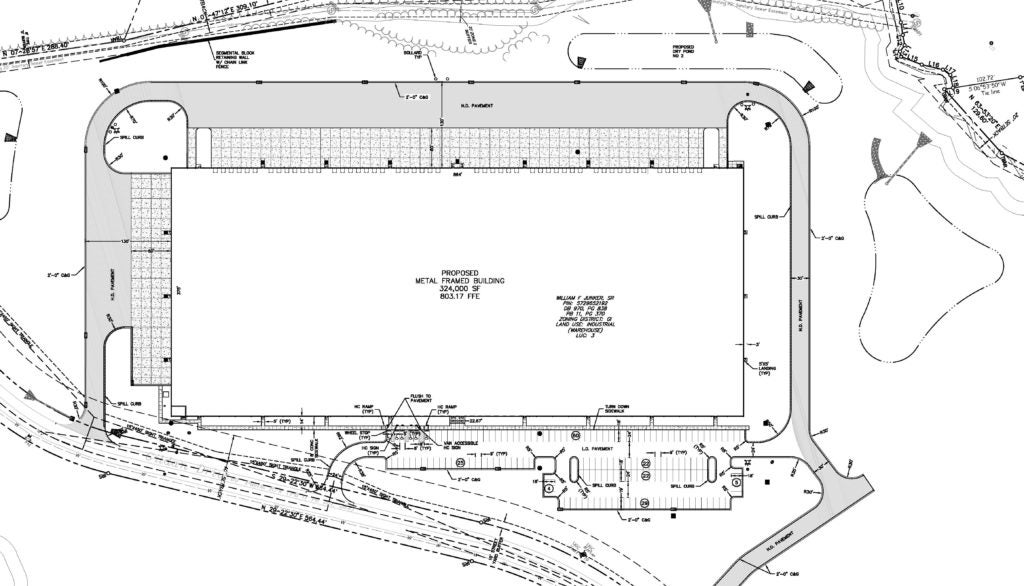

Phase I - Building #1
| Square Footage: | 324,000 SF |
|---|---|
| Clear Height: | 32.0' |
| Column Spacing: | 50' x 54' |
| Building Type: | Precast Concrete |
| Sprinkler System: | ESFR |
| Construction Commencement: | August 2018 |
| Building Completion: | TBD |

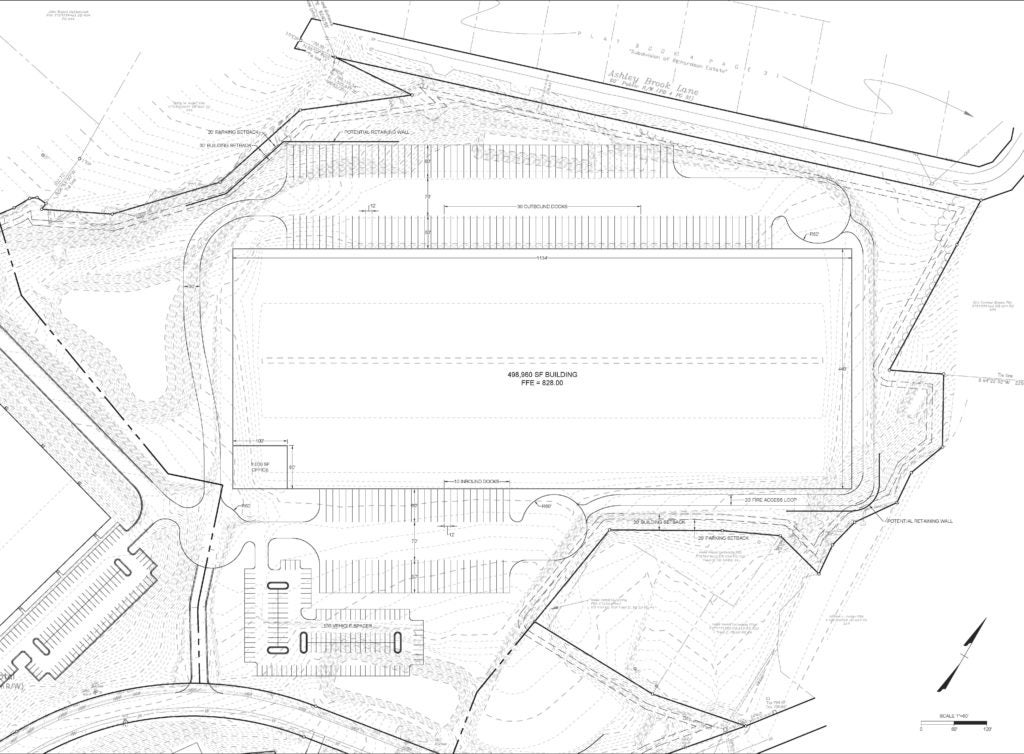

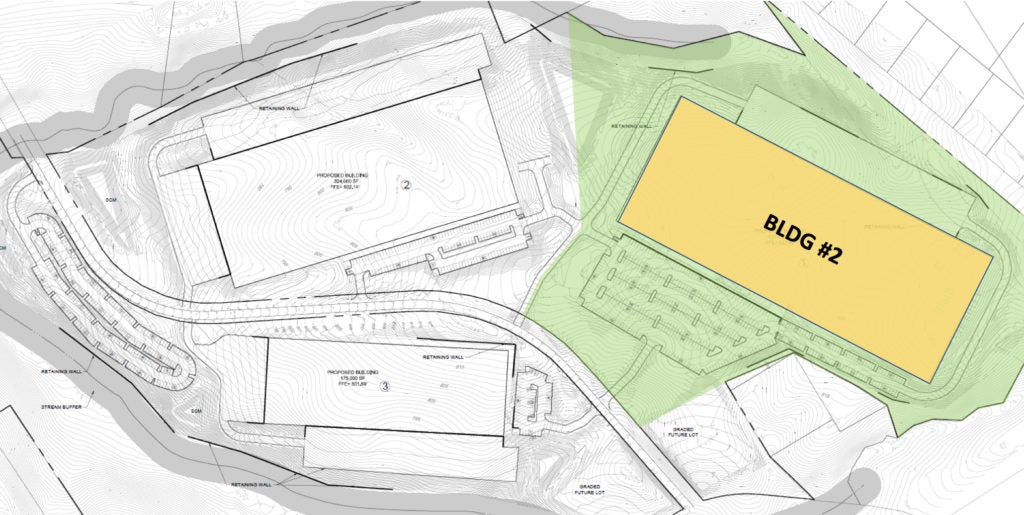

Phase II - Building #2
| Proposed Square Footage: | ±500,000 SF |
|---|---|
| Clear Height: | 32.0' |
| Column Spacing: | 50' x 54' |
| Building Type: | Precast Concrete |
| Sprinkler System: | ESFR |
| Construction Commencement: | TBD |
| Building Completion: | TBD |

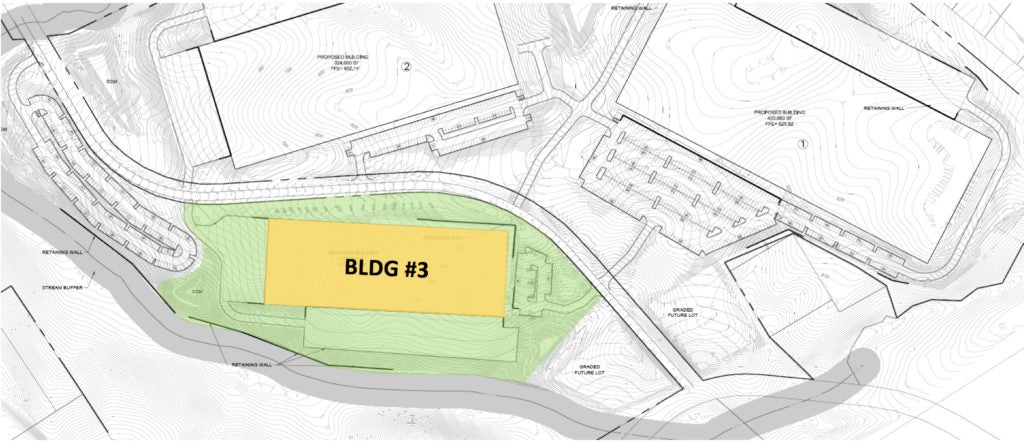

Phase III - Building #3
| Proposed Square Footage: | 176,018 SF |
|---|---|
| Clear Height: | 32.0' |
| Column Spacing: | 50' x 54' |
| Building Type: | Precast Concrete |
| Sprinkler System: | ESFR |
| Construction Commencement: | TBD |
| Building Completion: | TBD |

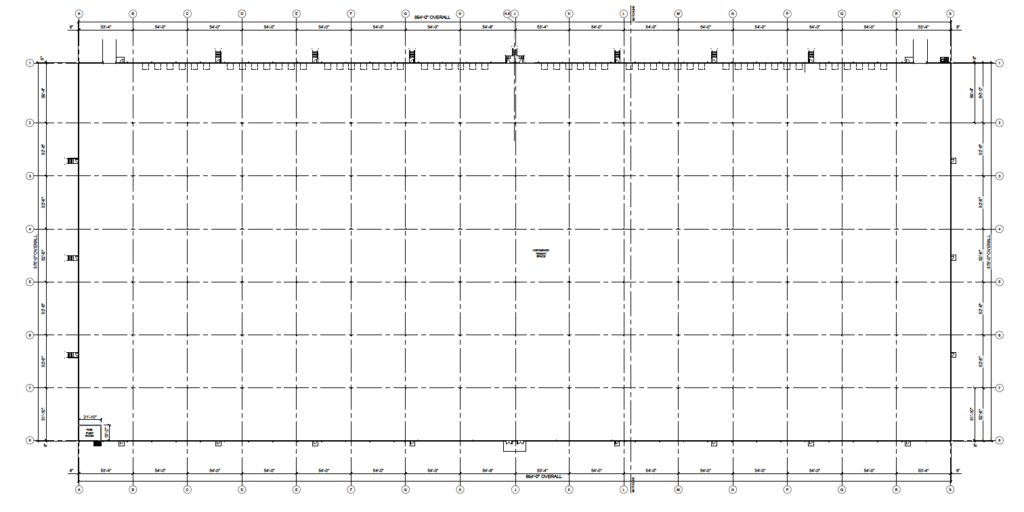

| Building 1: | Architectural Drawing |
|---|
